80w UFO LED High Bay Light
80w UFO LED High Bay Light 80w UFO LED High Bay Light 80w UFO LED High Bay Light 80w UFO LED High Bay Light 80w UFO LED High Bay Light

80w UFO LED High Bay Light

Product ID : EG-HB80W-03
Product Tags :
Product Description

80w UFO LED High Bay Light




20160819 I WANT-200W.75_副本.png




Anti-glare Optical Lens design





Light Efficiency: 150Lm/w        Up to 75% energy saving







IK10 Test






Power: 80w

Input Voltage: 100-240v AC50/60Hz

Size: ¢261*188 mm

PF: >0.95

IP Rating: IP66

Raw-material: Die-cast ADC12 Aluminum

Light Efficiency: Nichia 150Lm/w

                             Lumileds 130Lm/w

Luminous Flux: 10400-19500Lm

Beam Angle: 60°,90°,120°

Color Temperature: 2500-6500k

Power Supply: MEANWELL / MOSO warranty 5 years

Light Source: Lumileds / Nichia 3030*136LEDS

CRI: 80

Installation: Hook Mounting / Ring Mounting / 360° adjustable bracket Mounting

Installation height: 5-30M

Product Weight: 2.9kgs

Packing: 325*325*225mm  3.7kgs/ctn

Warranty: 5years

Certification: TUV CE FCC IK08 IP67 Explosion




dali.jpg   dimmable.png   daylight.png   microwawe.png   zigbee.png





41033.gif    41014.gif   imgres-2.png    图片4.png










Exploded Diagram:




Exploded Diagram.png

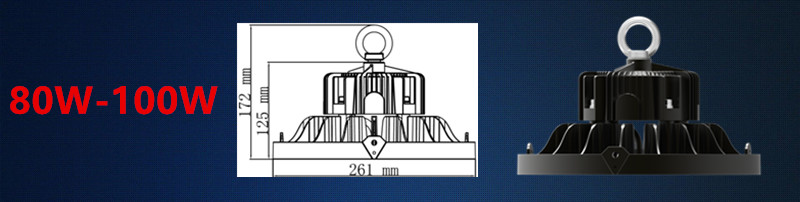

Size:






Light Distribution Curve:



         60.png        90.png        120.png


                              60°                                    90°                                    120°





Installation Method:




installation pictures.jpg






20160825 I WANT-200W.111 - 副本.jpg





Packing:






Application:


Warehouse,  Factories, Workshops, Highway toll station, Gas station, Supermarkets, Exhibition halls, Stadiums and similar applications.



Project:





UFO Project.png





UFO Project(1).jpg













IES Download:


IES-80w-60°_IESNA2002.rar

IES-80w-90°_IESNA2002.rar

IES-80w-120°_IESNA2002.rar
