200w  LED FLOOD LIGHT
200w  LED FLOOD LIGHT 200w  LED FLOOD LIGHT 200w  LED FLOOD LIGHT 200w  LED FLOOD LIGHT 200w  LED FLOOD LIGHT

200w LED FLOOD LIGHT

Product ID : EG-FL200W-07
Product Tags :
Product Description



200w LED High Bay Light  --Innovation Private mold design



























           dali.jpg   dimmable.png   daylight.png   microwawe.png   zigbee.png




Specification:







Power: 200w

Input Voltage: 100-240v AC50/60Hz

Size: ¢360*188 mm

PF: >0.95

IP Rating: IP66

Raw-material: 6063 Aluminum Alloy with super thermal management

                         keeping the junction temperature below 65°

Light Efficiency: Nichia 150Lm/w

                             Lumileds 130Lm/w

Luminous Flux: 26000-30000Lm

Beam Angle: 60°,90°,120°, 150°

Color Temperature: 2500-6500k

Power Supply: MEANWELL / MOSO warranty 5 years

Light Source: Lumileds / Nichia 3030*308LEDS

CRI: 80

Installation: Hook Mounting / Ring Mounting / Bracket Mounting

Installation height: 5-30M

Product Weight: 7.8kgs

Packing: 450*450*200mm  8.3kgs/ctn

Warranty: 5years

Certification: TUV CE FCC IK08 IP66





41033.gif    41014.gif   imgres-2.png    图片4.png







Application:



Warehouse,  Factories, Workshops, Highway toll station, Gas station, Supermarkets, Exhibition halls, Stadiums and similar applications.










 Exploded Diagram:


















Size:













Light Distribution Curve:





                100w-50°-07 UFO.png      150w-90°-07 UFO.png





















    100w-120°-07 UFO.png      150w-150°-07 UFO.png





Ring Mounting:















Installation Method:



 Suspended:

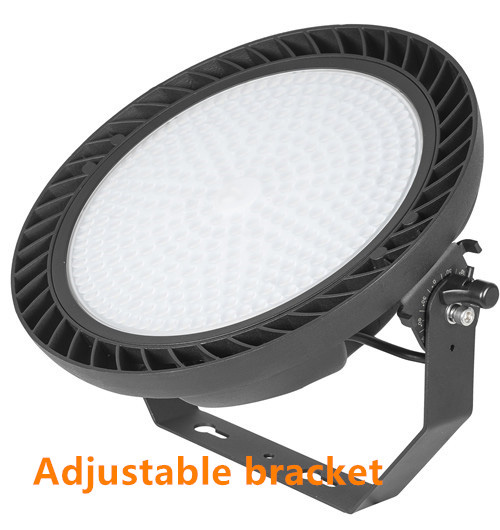

Adjustable bracket Mounting:

















Project:












IES Download:





IES-200W-50°_IESNA2002.rar

IES-200W 90°.rar

IES-200W-120°_IESNA2002.rar

IES-200W 150°.rar
