80w LED Grille Panel Light
80w LED Grille Panel Light 80w LED Grille Panel Light 80w LED Grille Panel Light 80w LED Grille Panel Light 80w LED Grille Panel Light

80w LED Grille Panel Light

Product ID : EG-GL80W-5951195-01
Product Tags :
Product Description

80w LED Grille Panel Light  --- 595*1195*85mm


1st Gen-05.jpg



UGR<16

Why choose UGR<16 Anti-glare LED Luminaires?


The right light can have a favorable effect on various physiological processed in the human body. Statistically, 75% of office workers don't feel comofortable at their work time.

Evergreen LED Grille Panel light solutions can enhance their comfort,task performance, and productivity. Anti-glare light and light consistency allows the teachers to create the right mood to help pupiles to concentrate, relax etc. depending on the activity at hand,and so perform better overall.


Product Benefit:


--Light guided via quadrification optic lens for maximum luminaire efficiency, perfect glare reduction(UGR<16) and homogenous light distribution(85°).

--Robust iron struction with white painting treatment.

--Energy saving upt 50%(compare to fluorescnet lamps)

--Flicker free light thanks to special electronic control gear.

--Luminaire efficacy: >120Lm/w

--Initial color consistency: <5 SDCM

--Lifetime(L80/B50) up to 50,000hrs(at 25°)

--Warranty 5 years





ITEM No: EG-GL80W-5951195-01


Specification:



Power: 80w

Size: 595*1195*85mm

Input Voltage: 100-240v AC50/60Hz


Material housing:  Galvanized / Steel optional

Finishing:              Powder paint surface treatment

Optical material:    Polycarbonate


Operating temperature:  -10° ~ +40°

Storage temperature:     -25° ~ +55°


On-/off-cycles:       100,000

Color temperature idnex CRI:    80

Degree of protection(IP):           IP20

Fire-proof rated:                         V2

LED Chip:                            Everlight or Osram 2835

LED Driver:                     OSRAM

Driver failure rate(at 5,000hrs):    1%

LED Efficacy:                      130Lm/w

LED Lumen:                        10400Lm

Light Distribution:                     88°

Warranty:                                  5 years


0-10v dimmable, Traic dimmable, DALI, Emergency function optional


Installation method: Recessed , Suspended, Surface



Product N.W.:                     12kgs



Certification: CE ROHS ENEC

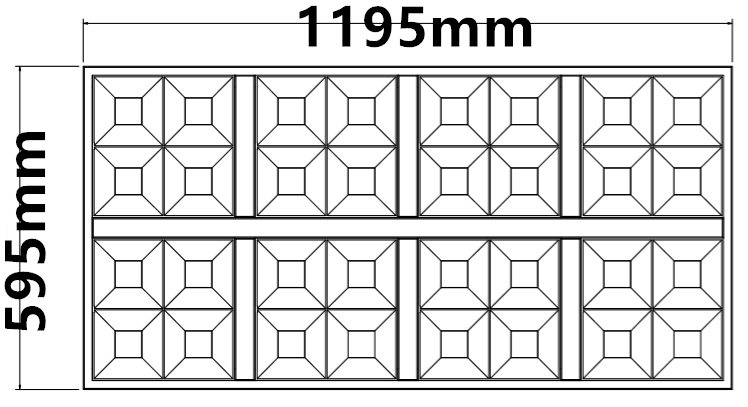

Size:












Installation open drawing(mm):  585*1185mm







Exploded drawing:










Light Distribution Curve:





Product details


            1528278384581850.png              1528278415145232.png


                    Polycarbonate optical design                                        Surface mounted




                1528278832113126.jpg                                            IMG_8413.JPG


                       Emergency optional                                                    Consistency light





Project











IES Download:

IES-80w-595x1195mm.pdf
